ELECTROMAGNETIC FLOWMETER 6400
REMOTE TYPE
| Features : | |
| Size | 15NB to 300NB |
| Type of Output | 4 to 20 mA DC, Isolated |
| Calibration Range | As per requirement (Factory Calibrated) |
| Accuracy | ±0.5% F.S. |
| Linearity | ±0.5% |
| Repeatability | ±1% |
| Process Temperature | 150oC max. |
| Process Pressure | 10 kg/cm2 max. |
| Material of construction | Lining - Neoprene / Rubber. PTFE (Teflon) |
| Enclosure Protection | WP to IP-66 & FLP for Gas Groups IIA & IIB. |
| Flange | MS / SS |
| Electrode | SS 316 |
| Body | MS |

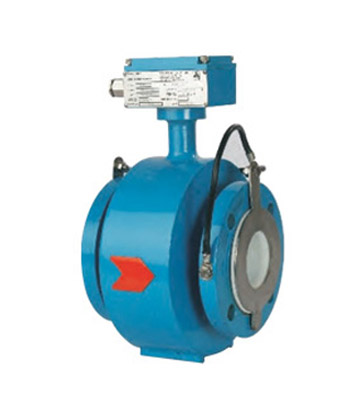

MagFlow 6410 (Full Bore Type)
Crystal Series 6400 is a new range of Bipolar Pulsed DC Full Bore Type Electromagnetic Flowmeters. It is suitable for pipes with diameters of 10 mm to 600 mm. They are based on Faraday’s law of Electromagnetic Induction. The meter features flanged construction and is available with choice of Liner and Electrode materials. Series 6400 has excellent accuracy and flow rangeability. The meter is suitable for use on wide range of corrosive and aggressive range of conductive liquids.
Salient Features
• Based on Faraday’s law of Electromagnetic Induction.
• Suitable for pipe sizes of diameters 10 mm to 600 mm
• Coil Assembly in hermetically sealed Welded construction
• Choice of PTFE / Neoprene Rubber / Polyurethane liners

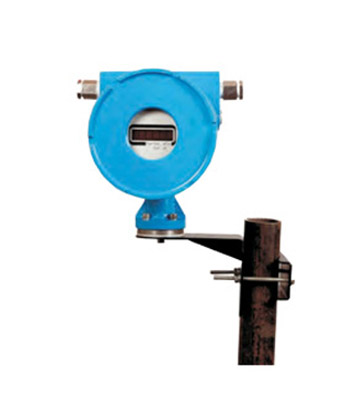

• Integral or Remote Transmitter
• Field interchangable electronics
• Optional LED display for Flow Rate or Totaliser indication in Engineering Units
• No pressure loss
• High linerarity due to characteristic magnetic field
• Absolute Zero stability and noise elimination
• Measurement independent of liquid properties
| Applications | ||
| Chemical, Petrochemical | Drug Industries | Steel Industries |
| Process Industries | Sugar Industries | Mining Industries |
| Fertilizer Industries | Beverage Industries | Dredging Industries |
| Pharmaceutical Industry | Paper and Pulp Industries | Water and Waste-Water Management |
| Food Industry | Aluminum Industries | And many others |
Operations
Electromagnetic Flowmeters are based on Faraday’s law of Electromagnetic Induction.
In a Electromagnetic Flowmeter, magnetic field is generated by a set of coils. As the conductive liquid passes through the electromagnetic field, an electric voltage is induced in the liquid, which is directly proportional to its velocity. This induced voltage is perpendicular to both the liquid flow direction and the electromagnetic field direction. The voltage sensed by the electrodes is further processed by the transmitter to give standardised output signal or displayed in appropriate Engineering Units on LED Display.
The flux density of the electromagnetic field in a given Flowmeter and the distance between the electrodes are constant, therefore, the induced voltage is only a function of liquid velocity.
The induced voltage is not affected by the physical properties of liquid like temperature, viscosity, pressure, density and conductivity, as long as conductivity of the measure liquid is above minimum threshold level. For reliable measurement the pipe must be completely full of liquid.
The electromagnetic field coil assembly is excited by pulsed DC technique, which eliminates the interfering noise and provides automatic zero correction.
| Specification | |
| Suitable for Pipe Sizes | DN 10 to DN 600 |
| Media Conductivity (Min.) | 10 μS/cm (Consult factory for 5 μS/cm) |
| Media Pressure | PN 40 upto DN 80, PN 16 upto DN 200, PN 10 upto DN 600 |
| Media Temperature (PTFE) | 0o - 180o C with Remote transmitter 0o - 120o C with Integral transmitter 0o - 90o C max for other liners |
| Ambient Temperature Range | 0o - 50o C |
| Materials : | |
| Pipe | SS 316 (Non - magnetic ) |
| Liner | PTFE / Neoprene / Polyurethane |
| Electrode | SS / Hastelloy C / Ta / Ti / Pt |
| End Connections / Flanges | Carbon Steel / SS 304 / SS 316 / SS 316L |
| Coil Housing | Carbon Steel / SS, Epoxy painted |
| Transmitter | Cast Aluminium (LM6), Epoxy painted |
| Flange / End Connection Std. | DIN / ANSI / BS / SMS / TRI-CLAMP |
| Power Supply | 110 / 240V AC ± 15%, 50Hz |
| Power Consumption | 20 VA |
| Cable Gland Entry | 1/2" NPT (F) |
| Analog Output (Isolated) | 4-20 mA DC / 0-20 mA DC |
| Pulsed Output (Optional) | Low Pulsed Rate Output 10 to 36000 pulses per hour |
| • Output to drive directly external electromagnetic counter of 12/24V DC @ 200 mA capacity OR | |
| • Open Collector Output , High Pulse Rate Output, 0.5 KHz/1 KHz/10KHz/(Open Collector Output) | |
| Communication Port (Optional) | RS - 232 / RS - 485 MODBUS RTU Protocol |
| Maximum Load Resistance | 1000 Ω |
| Response Time | 5 seconds
|
| Flow Velocity Range | 0.3 to 10 m/s |
| Ingress Protection | IP - 65 (IP - 68 on request) |
| LED Display | 4 Digit Indication for Flow Rate and 8 Digit Indication for Totaliser Programming from Front Keyboard for Engineering Units |
| Accuracy | ± 0.5% of measured value (calibrated) at reference conditions |
| For Flow between 20 to 100% | ± 1% of measured value (normal) |
| For Flow between 0 to 20% | Refer Error Diagram below |
| Reference Conditions | |
| Power Supply | Nominal |
| Ambient Temperature | 25o C + 2o C |
| Load Resistance | 500 Ω |
| Repeatability | ± 0.2% of span |
| Effect of Ambient Temperature | Less than 0.2% per 1o C |
| Effect of Power Supply | Less than 0.1% per 10% Voltage variation |
| Effect of Load Resistance | Less than 0.1% of span |
