FLRT-11-RLVT is designed for measurement of flow rate & totalized water flow through dam discharge, flow in open ducts and channels. It can be adapted to any type of weir or flume.


Features

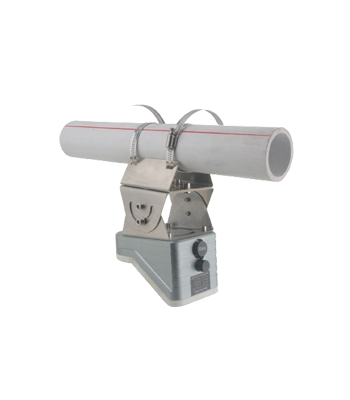

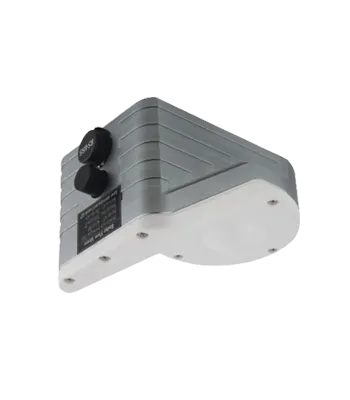

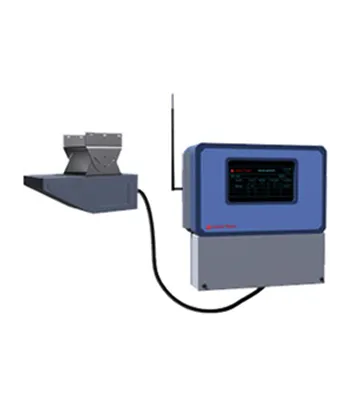

Two piece design, Radar Level and Velocity Transmitter and Flow Computer.
Adaption to any kind of standard or nonstandard weirs and flumes.
Facility to calibrate the Input range in nonlinear scale up to 100 steps.
TFT screen Display with touch screen operation and settings.
Built in totalizer function.
Built in RTC with data memory of 1 to 24 months data log subject to data log frequency
Data Logger function with 1GB memory, USB Port to retrieve the data locally.
Optional digital output of RS485 Modbus RTU protocol Optional analogue output of 4 to 20 mA corresponding to flow rate.
Multiple AC & DC Supply system options 12V DC, 24V DC, 230V AC.
Auxiliary supply of 12V DC, 24V DC for external sensor is available.
Overall accuracy of flow measurement up to +/- 5% (Delete).
Optional RTU function with wireless GSM and GPRS communication.
Flow Reporter software available for remote monitoring, configuration and data retrieval from multiple locations.


Application

FLRT-11-RLVT is used for measurement and recording of water flow through dam discharge. It is also installed to measure and record flow thru open channels, streams & rivers. Can be used as Flow Data Logger cum RTU with Wireless Data Acquisition system.


Function

When FLRT-11-RLVT flow meter is installed across open canal or stream, it can measure, calculate & totalize the flow based on one of the two following principles-
Programmed formulas for different dimensions of the most common flumes and weirs such as Cut Throat, Parshall flumes and V-notch weirs based on ISO 1438.
In case of Flow measurement on the basis of Area Velocity calculation, Input range can be programmed in nonlinear scale up to 100 steps.
